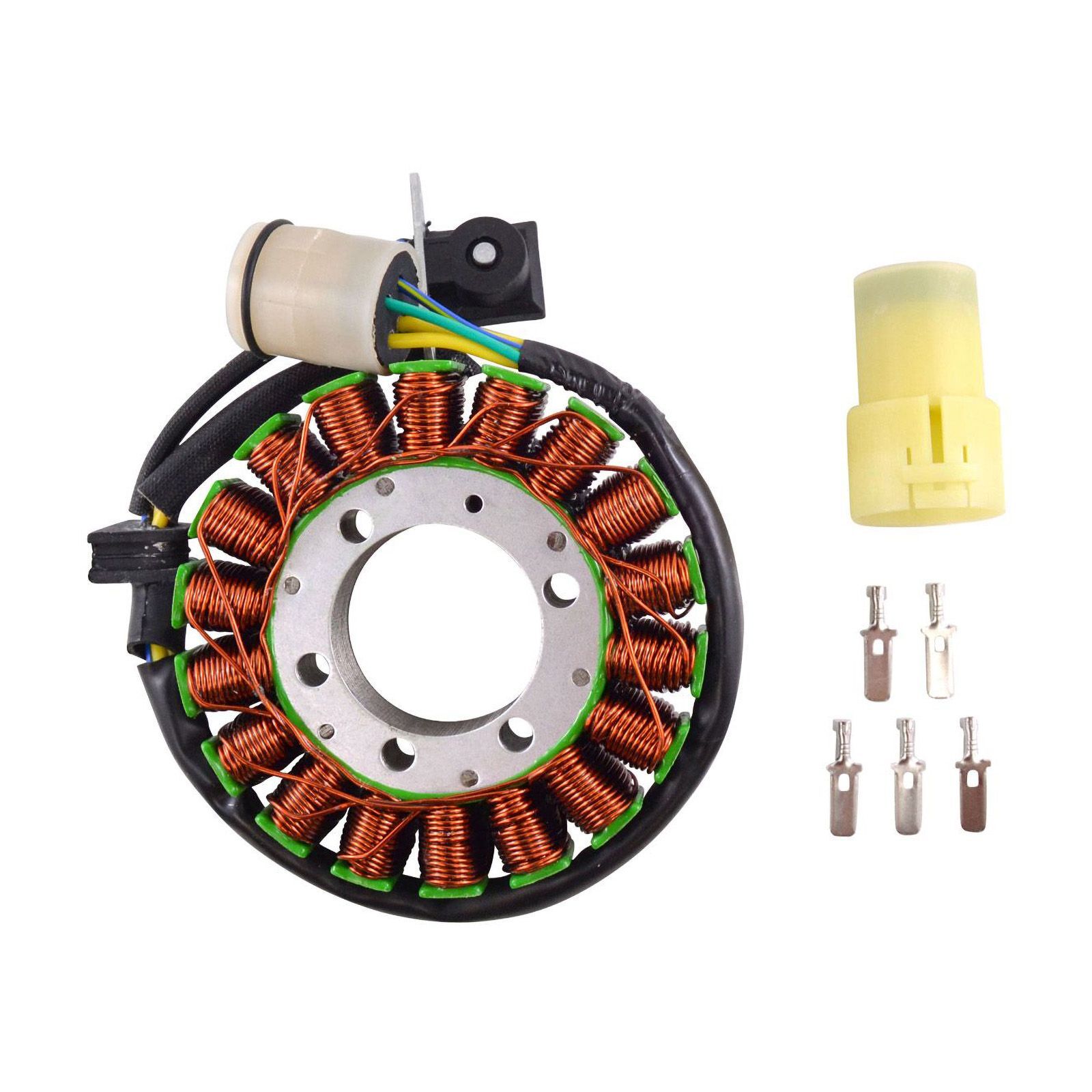

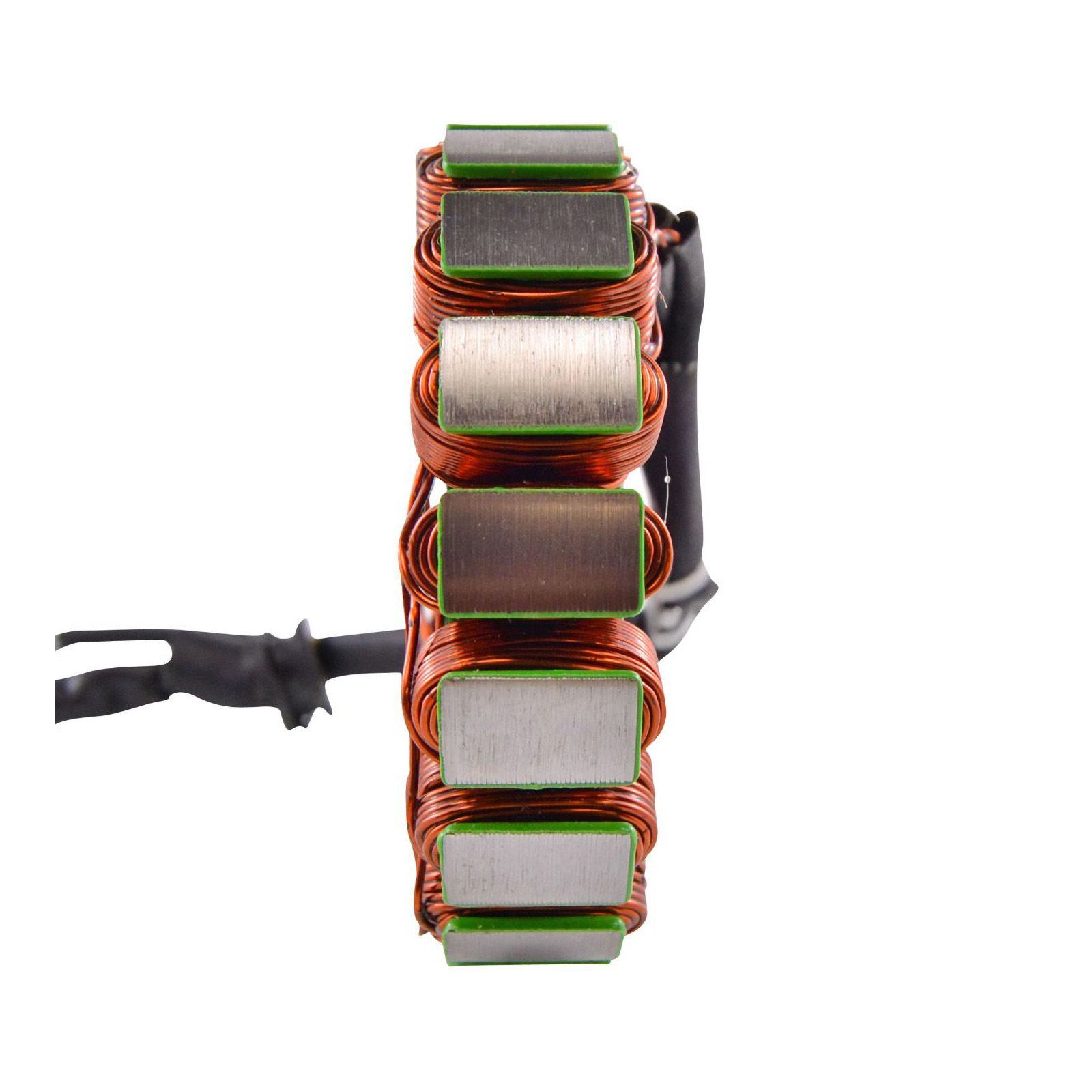

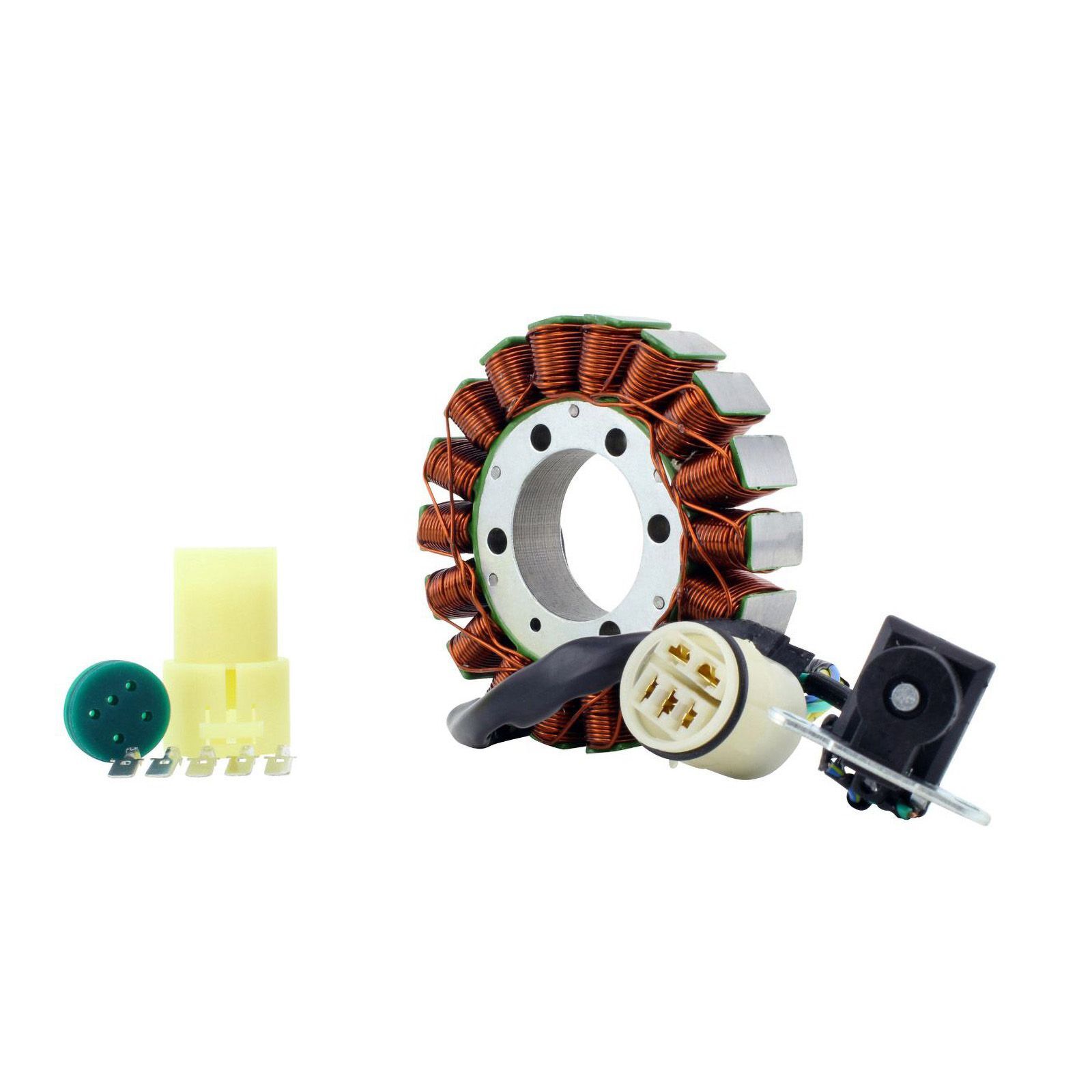

Generator Stator for Honda TRX420FA2 4WD RANCHER 2014

NOTE: This stator does not fit all Australian model XR600R's, please see a breakdown of the applicable fitments below!

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included

Dimensions:

• Interior diameter: 53mm
• Exterior diameter: 115mm
• Thickness: 15mm
• Length of wires stator to grommet: 120mm
• Length of wires grommet to plug: 700mm

Other specifications:

• Number of wires: 3
• Number of plugs: 3
• Number of pins: 3

Wire to wire resistance:

• Alternator: Black to Green = 0.4 ohms +/-20%
• Source: Red to Green = 300 ohms +/-20%

Please note: Our stator is designed differently than the OEM part. It is designed as a direct plug and play and should be used as such.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Replaces OEM 31120-MN1-671 which fits;

• 1985-1987 Canada model
• 1985-1987 US model
• 1985-1987 California model

Replaces OEM 31120-MN1-681 which fits;

• 1991-2000 Canada model
• 1991-2000 US model
• 1991-2000 California model
• 1999 Australia model

Replaces OEM 31120-MK2-005 which fits;

• 1990 Canada model
• 1988-1990 US model
• 1988-1990 California model

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Bike Fitment:

• fits Honda TRX420FA2 4WD RANCHER 2014
