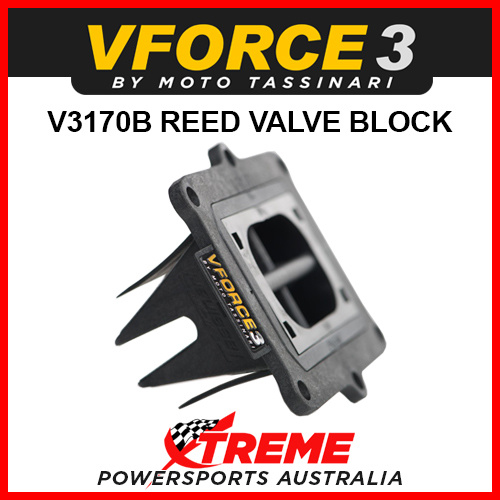

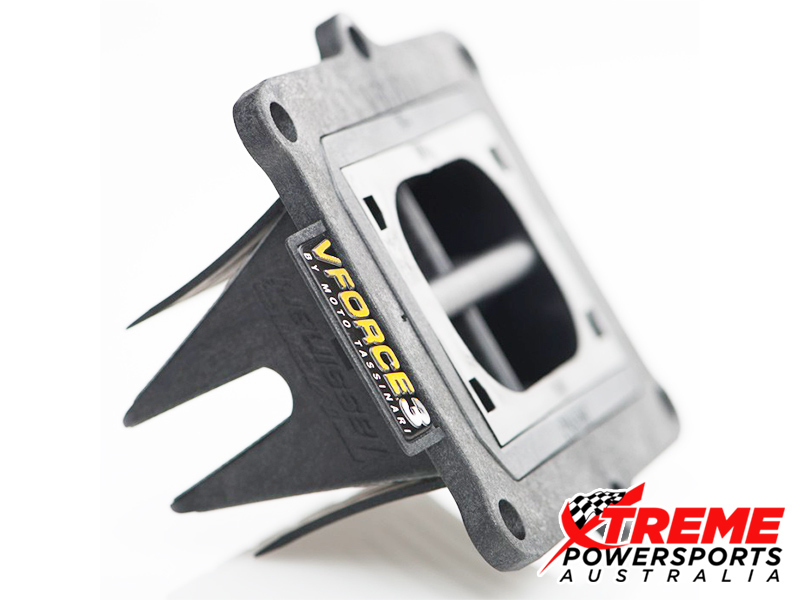

Moto Tassinari V3170B Honda CR500R CR 500 R 1986-2001 VForce3 Reed Block

The unique design of the VForce reed valve system features double the reed tip surface over a conventional reed valve design. This has two major benefits: 1) The reed petals only travel half the distance as a conventional reed valve design to get the same airflow. 2) Because the reed petals only need to travel half the distance of that on a conventional reed valve design, there is a greater chance of them being fully opened as well as a better chance of sealing when they are "closed". A reed petal never truly "closes" in a classic sense, as it is always in movement. Consider this, an engine operating at 8,000 RPM results in a reed petal opening and closing 133 times in one second. This fact, sheds light on another VForce advantage. Since the petals are only traveling half the distance, they generally last longer are they receive less wear than the reed petals on a conventional reed valve design.

Features:

• Double the reed tip surface over a conventional reed valve design
• Increased bottom end, stronger mid-range and longer top-end
• Greater efficiency due to reduced reed petal travel
• More airflow means more horsepower
• Reduced reed petal wear
• Screw free design eliminates risk of screws going through motor
• Screw free design enables super quick reed petal changes

Suits VForce3:

• Honda CR500R 1986
• Honda CR500R 1987
• Honda CR500R 1988
• Honda CR500R 1989
• Honda CR500R 1990
• Honda CR500R 1991
• Honda CR500R 1992
• Honda CR500R 1993
• Honda CR500R 1994
• Honda CR500R 1995
• Honda CR500R 1996
• Honda CR500R 1997
• Honda CR500R 1998
• Honda CR500R 1999
• Honda CR500R 2000
• Honda CR500R 2001
