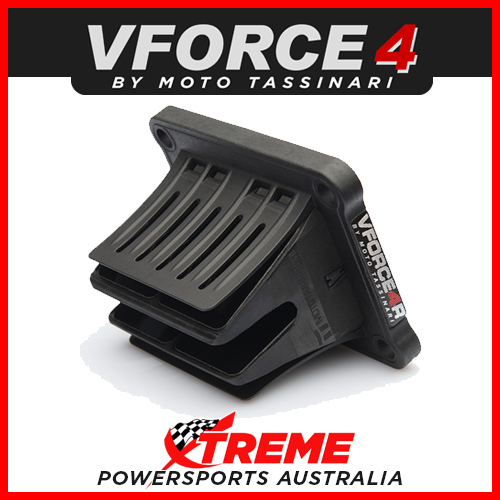

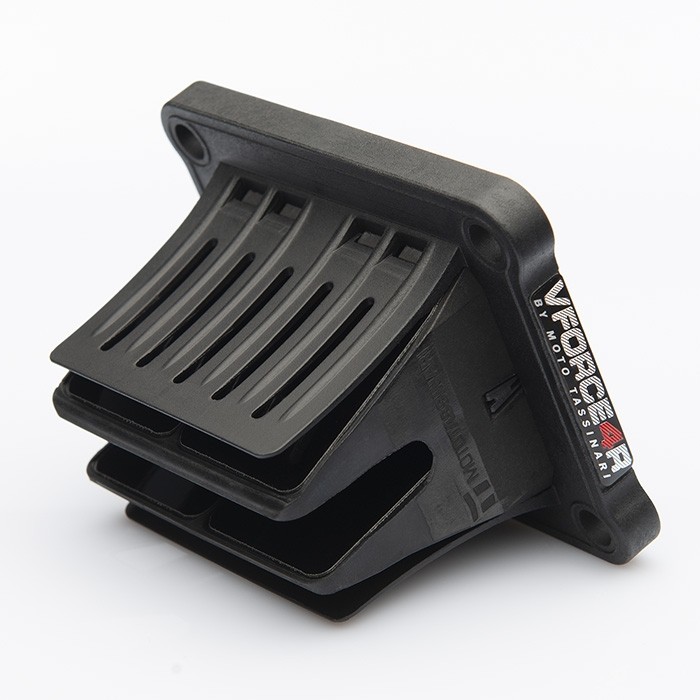

Moto Tassinari V4R01D Honda CR125R 1987-2000,2002 VForce4 Reed Block

The all-new VForce4R for the Honda CR125 offers enhanced reed petal life as well as all the added benefits of the unique VForce reed valve design.

The unique design of the VForce reed valve system features double the reed tip surface over a conventional reed valve design. This has two major benefits: 1) The reed petals only travel half the distance as a conventional reed valve design to get the same airflow. 2) Because the reed petals only need to travel half the distance of that on a conventional reed valve design, there is a greater chance of them being fully opened as well as a better chance of sealing when they are "closed". A reed petal never truly "closes" in a classic sense, as it is always in movement. Consider this, an engine operating at 8,000 RPM results in a reed petal opening and closing 133 times in one second. This fact, sheds light on another VForce advantage. Since the petals are only traveling half the distance, they generally last longer as they receive less wear than the reed petals on a conventional reed valve design.

STANDARD VFORCE REED VALVE FEATURES:

• Double the reed tip surface over a conventional reed valve design
• Increased bottom end, stronger mid-range and longer top-end
• Greater efficiency due to reduced reed petal travel
• More airflow means more horsepower
• Reduced reed petal wear
• Screw free design eliminates risk of screws going through motor
• Screw free design enables rapid reed petal changes

IMPROVED VFORCE4 FEATURES:

• All-new reed petal resin system, carbon fiber and lay-up
• Pre-curved reed petal ensures better seal at tip
• Wider reed cage for maximum airflow
• Combined reed tip area increased by 10.5% resulting in increased total air flow
• Airfoil shape added to cage tip to increase air velocity from outer ports
• Long reed stops added to progressively slow petal tip velocity, for increased petal durability
• Reduced frontal area of central wing by 15.6% combined with a more aerodynamic shape

Bike Fitment:

• Honda CR125R 1987
• Honda CR125R 1988
• Honda CR125R 1989
• Honda CR125R 1990
• Honda CR125R 1991
• Honda CR125R 1992
• Honda CR125R 1993
• Honda CR125R 1994
• Honda CR125R 1995
• Honda CR125R 1996
• Honda CR125R 1997
• Honda CR125R 1998
• Honda CR125R 1999
• Honda CR125R 2000
• Honda CR125R 2002
