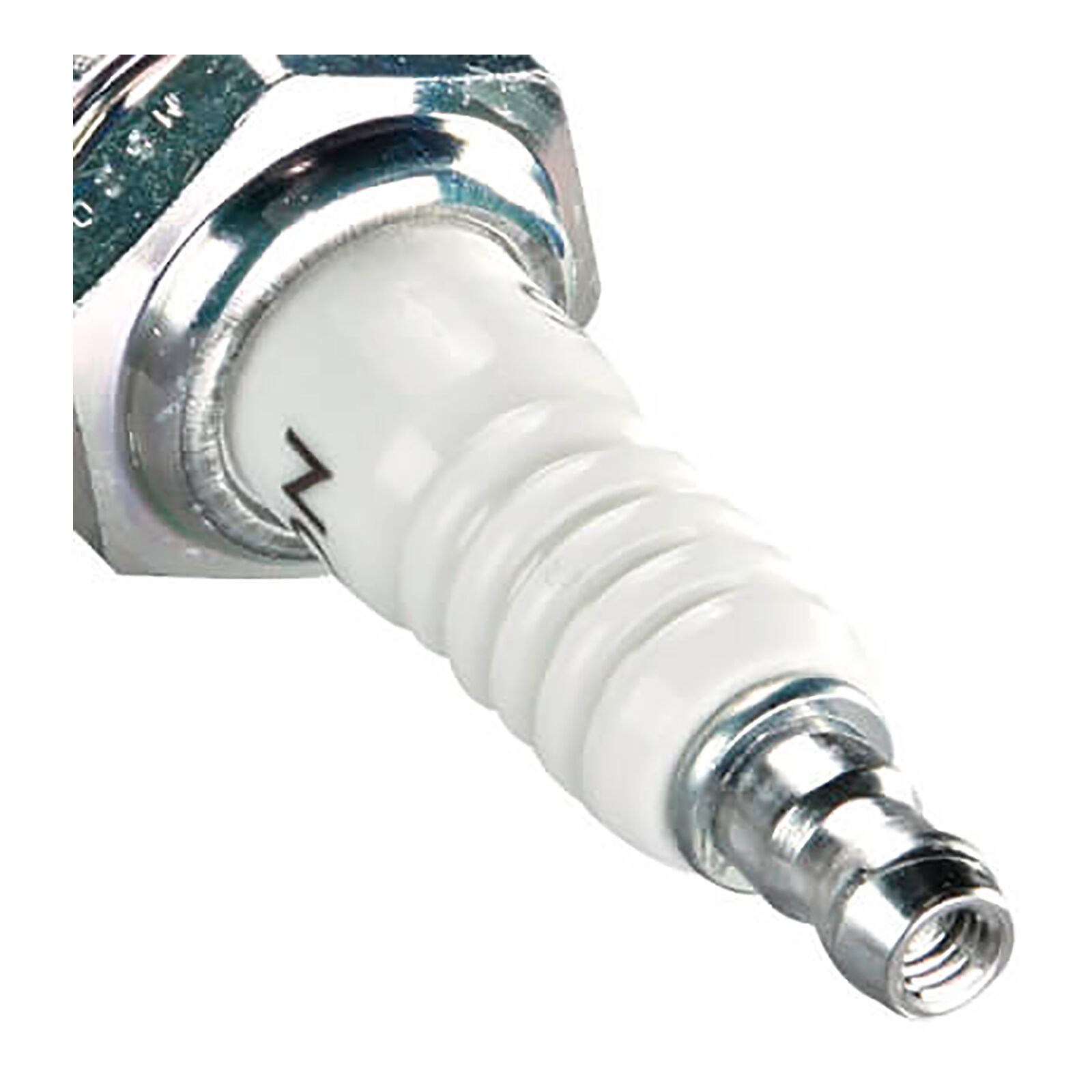

NGK Spark Plug for Suzuki TF125 Mud Bug 1977-2020

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles ATVs & UTVs in Australasia. With NGK's dedication to quality outstanding reliability and state of the art manufacturing techniques you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug insist on NGK.

The 98% pure copper core delivers increased heat dissipation for more reliable starts and reduced risk of overheating. While cold-rolled threads prevent cross-threading and damage to cylinder heads and a trivalent plating eliminates the need for anti-seize. Complete with a high-grade alumina silicate ceramic.

Shell

• Thread Size: 14mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Reach: 19mm (3/4 )
• Hex Size: 21mm (13/16 )
• Terminal Type: Removable Nut
• Overall Height: ISO
• Gap: 0.8mm (0.031 )

Centre Electrode

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Heat Range: 7

Bike Fitment:

• Suzuki TF125 Mud Bug 1977
• Suzuki TF125 Mud Bug 1978
• Suzuki TF125 Mud Bug 1979
• Suzuki TF125 Mud Bug 1980
• Suzuki TF125 Mud Bug 1981
• Suzuki TF125 Mud Bug 1982
• Suzuki TF125 Mud Bug 1983
• Suzuki TF125 Mud Bug 1984
• Suzuki TF125 Mud Bug 1985
• Suzuki TF125 Mud Bug 1986
• Suzuki TF125 Mud Bug 1987
• Suzuki TF125 Mud Bug 1988
• Suzuki TF125 Mud Bug 1989
• Suzuki TF125 Mud Bug 1990
• Suzuki TF125 Mud Bug 1991
• Suzuki TF125 Mud Bug 1992
• Suzuki TF125 Mud Bug 1993
• Suzuki TF125 Mud Bug 1994
• Suzuki TF125 Mud Bug 1995
• Suzuki TF125 Mud Bug 1996
• Suzuki TF125 Mud Bug 1997
• Suzuki TF125 Mud Bug 1998
• Suzuki TF125 Mud Bug 1999
• Suzuki TF125 Mud Bug 2000
• Suzuki TF125 Mud Bug 2001
• Suzuki TF125 Mud Bug 2002
• Suzuki TF125 Mud Bug 2003
• Suzuki TF125 Mud Bug 2004
• Suzuki TF125 Mud Bug 2005
• Suzuki TF125 Mud Bug 2006
• Suzuki TF125 Mud Bug 2007
• Suzuki TF125 Mud Bug 2008
• Suzuki TF125 Mud Bug 2009
• Suzuki TF125 Mud Bug 2010
• Suzuki TF125 Mud Bug 2011
• Suzuki TF125 Mud Bug 2012
• Suzuki TF125 Mud Bug 2013
• Suzuki TF125 Mud Bug 2014
• Suzuki TF125 Mud Bug 2015
• Suzuki TF125 Mud Bug 2016
• Suzuki TF125 Mud Bug 2017
• Suzuki TF125 Mud Bug 2018
• Suzuki TF125 Mud Bug 2019
• Suzuki TF125 Mud Bug 2020
