NGK Spark Plug for Yamaha AG100 1970-2017

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles ATVs & UTVs in Australasia. With NGK's dedication to quality outstanding reliability and state of the art manufacturing techniques you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug insist on NGK.

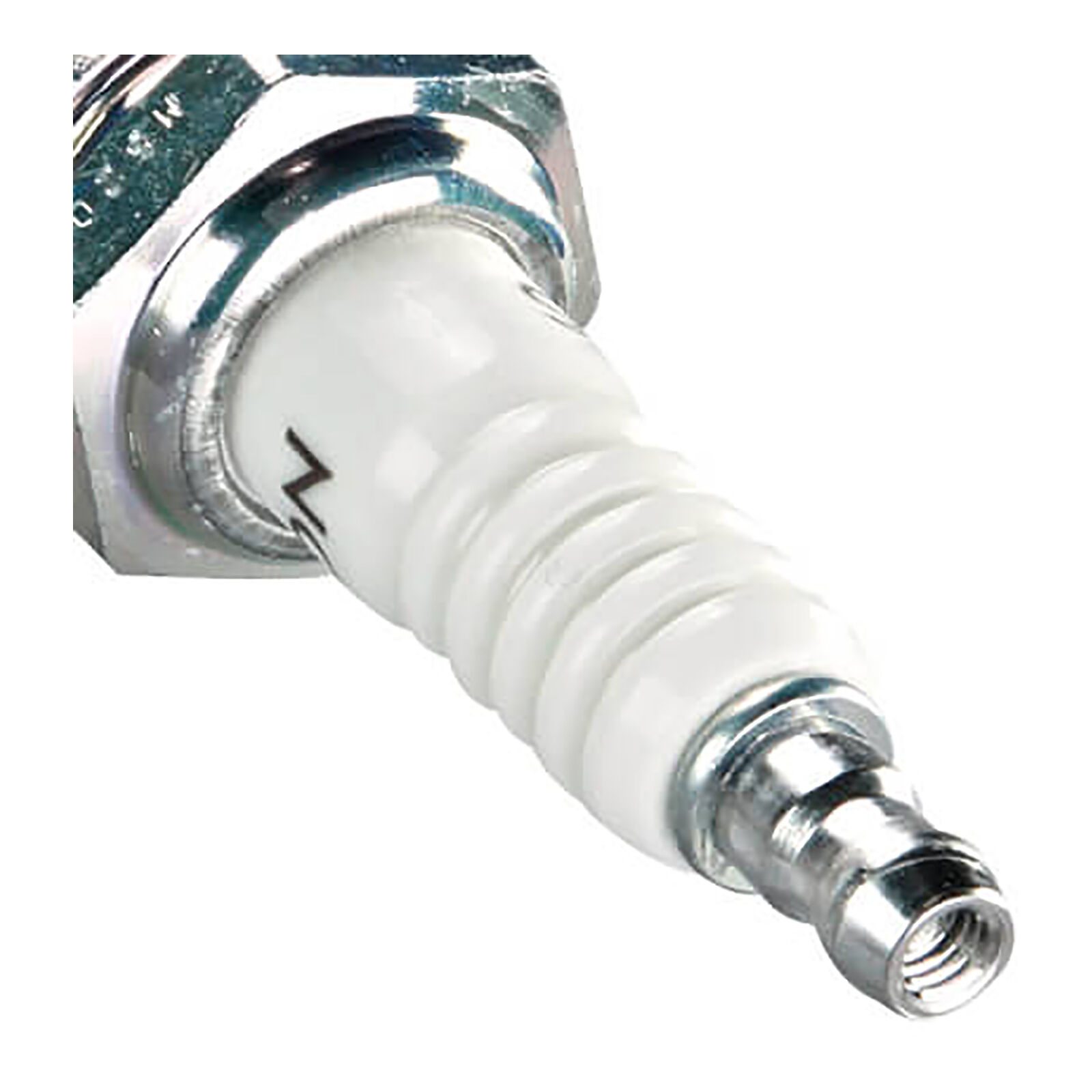

The 98% pure copper core delivers increased heat dissipation for more reliable starts and reduced risk of overheating. While cold-rolled threads prevent cross-threading and damage to cylinder heads and a trivalent plating eliminates the need for anti-seize. Complete with a high-grade alumina silicate ceramic.

Shell

• Thread Size: 14mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Reach: 19mm (3/4 )
• Hex Size: 21mm (13/16 )
• Terminal Type: Removable Nut
• Overall Height: ISO
• Gap: 0.8mm (0.031 )

Centre Electrode

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Heat Range: 7

Bike Fitment:

• Yamaha AG100 1970
• Yamaha AG100 1971
• Yamaha AG100 1972
• Yamaha AG100 1973
• Yamaha AG100 1974
• Yamaha AG100 1975
• Yamaha AG100 1976
• Yamaha AG100 1977
• Yamaha AG100 1978
• Yamaha AG100 1979
• Yamaha AG100 1980
• Yamaha AG100 1981
• Yamaha AG100 1982
• Yamaha AG100 1983
• Yamaha AG100 1984
• Yamaha AG100 1985
• Yamaha AG100 1986
• Yamaha AG100 1987
• Yamaha AG100 1988
• Yamaha AG100 1989
• Yamaha AG100 1990
• Yamaha AG100 1991
• Yamaha AG100 1992
• Yamaha AG100 1993
• Yamaha AG100 1994
• Yamaha AG100 1995
• Yamaha AG100 1996
• Yamaha AG100 1997
• Yamaha AG100 1998
• Yamaha AG100 1999
• Yamaha AG100 2000
• Yamaha AG100 2001
• Yamaha AG100 2002
• Yamaha AG100 2003
• Yamaha AG100 2004
• Yamaha AG100 2005
• Yamaha AG100 2006
• Yamaha AG100 2007
• Yamaha AG100 2008
• Yamaha AG100 2009
• Yamaha AG100 2010
• Yamaha AG100 2011
• Yamaha AG100 2012
• Yamaha AG100 2013
• Yamaha AG100 2014
• Yamaha AG100 2015
• Yamaha AG100 2016
• Yamaha AG100 2017
