Ram Diamond Ball Base

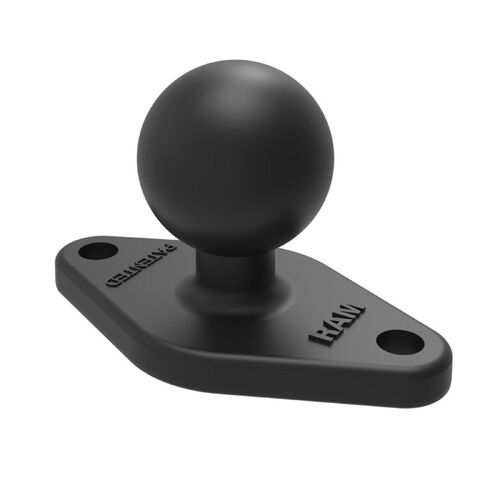

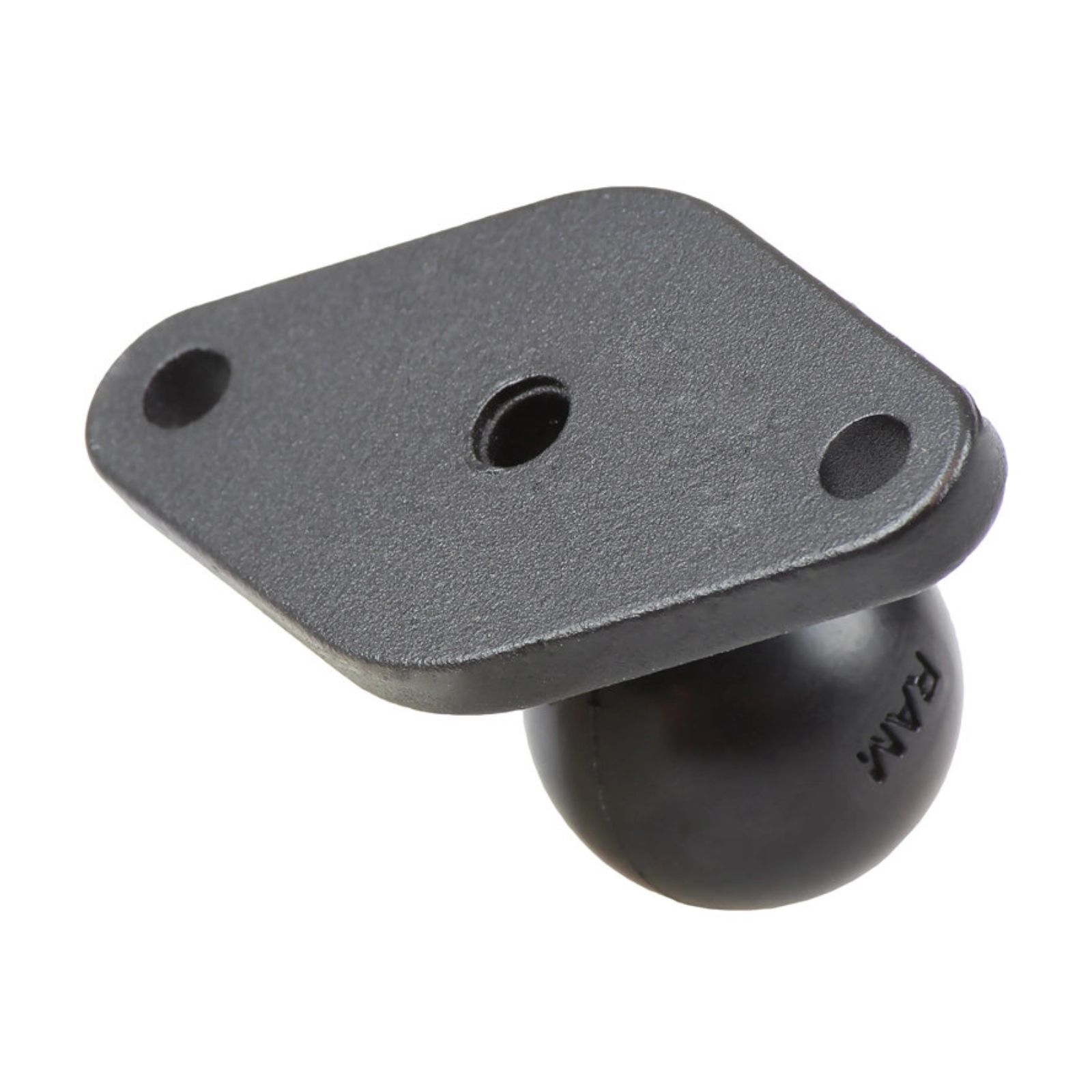

The RAM-B-238U ball base consists of a 1" B size rubber ball connected to a 2.43" x 1.31" diamond plate. The diamond plate features two holes that measure 1.912" from center to center, matching the industry-standard AMPS hole pattern. This diamond ball base is compatible with a wide variety of RAM^® device holders and cradles.

Features:

• Diamond plate features industry-standard AMPS hole pattern and measures 2.43" x 1.31"

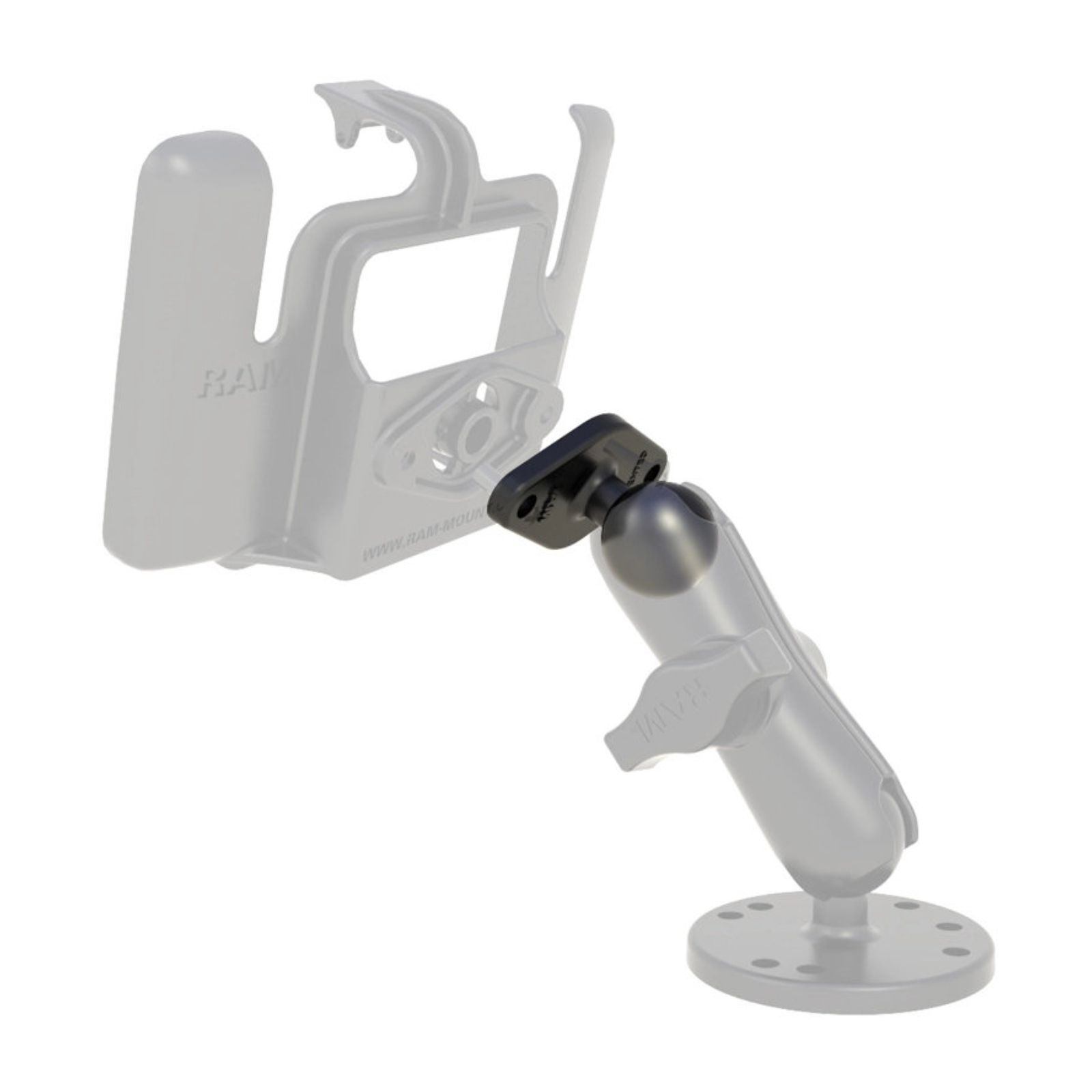

• Compatible with several RAM® device holders and cradles; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Specifications:

• HOLE PATTERN: 2-Hole AMPS: 1.912" (48.5mm)
• PLATE SIZE: 2.43" x 1.31" (61.7mm x 33.2mm)
• BALL SIZE: B Size (1", 25.4mm)
