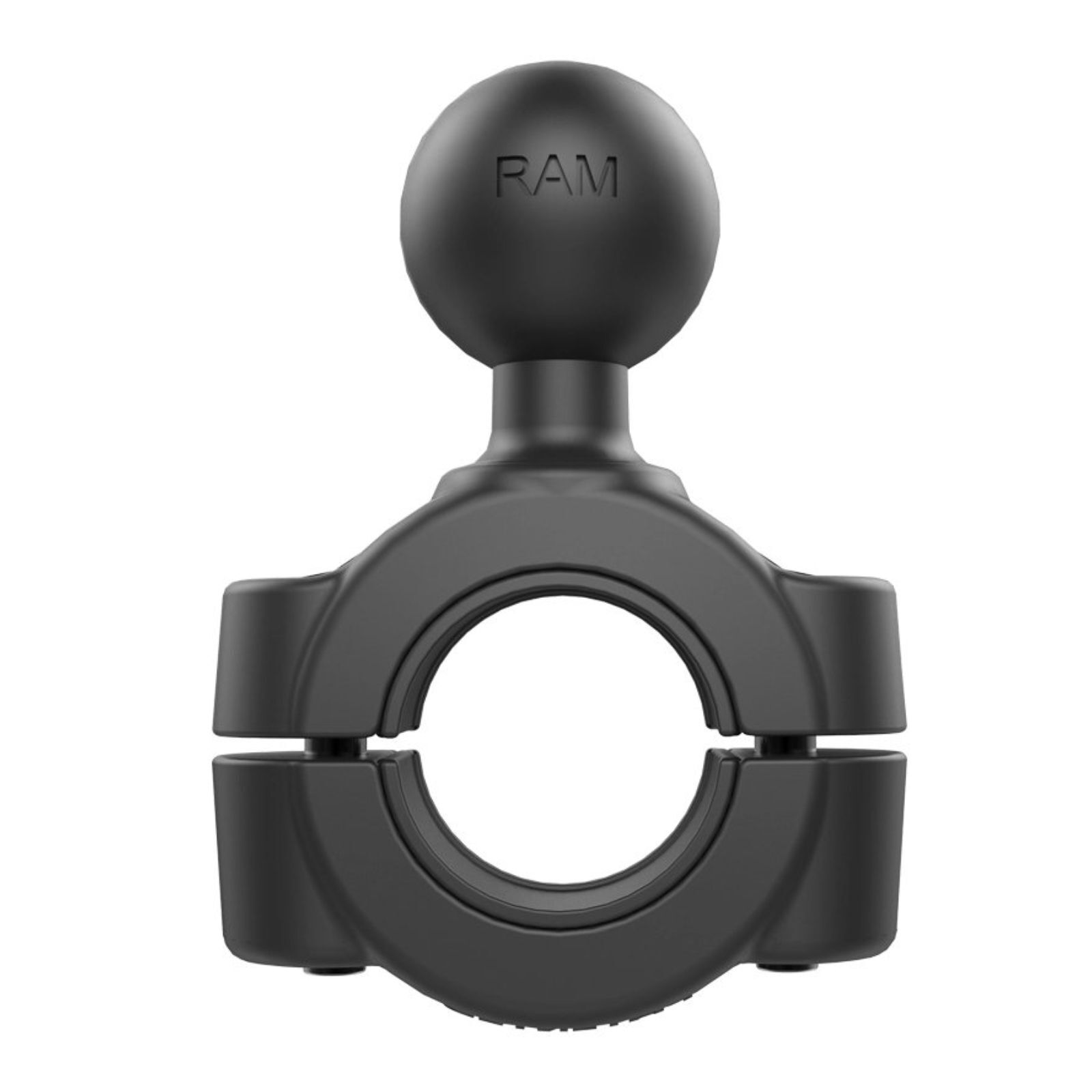

Ram Torque Medium Rail Base

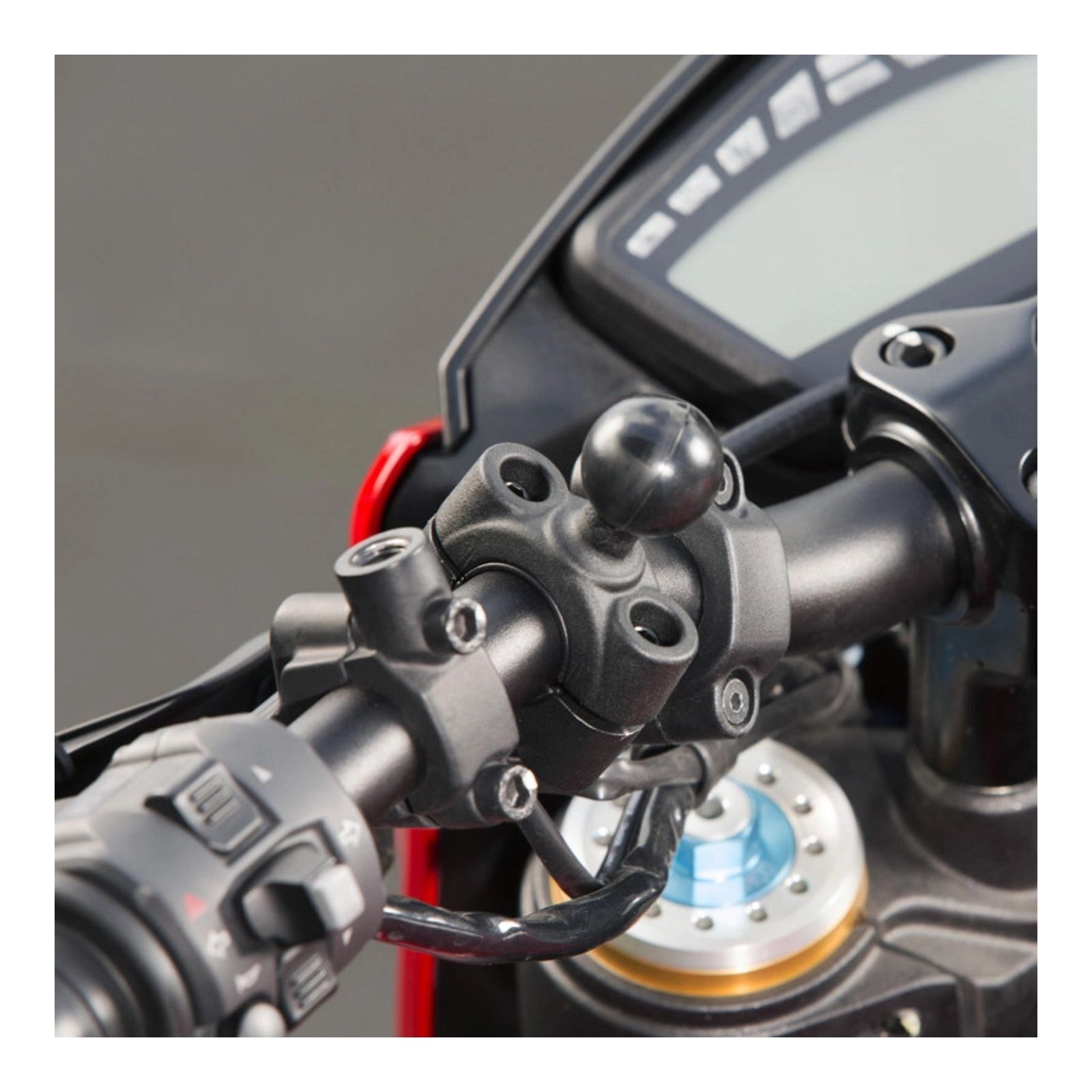

The RAM^® Torque^™ handlebar mounting base features a 1" B size RAM^® rubber ball and is compatible with rails 3/4” to 1” in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The RAM^® Torque^™ mounting base also includes nylon-insert locknuts to prevent loosening in high vibration environments.

Features:

• Handlebar mounting base with B size 1" rubber ball accommodates rails 3/4" to 1" in diameter
• Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Specifications:

• CLAMP RANGE: 0.75" (19.mm) - 1" (25.4mm) diameter
• BALL SIZE: B Size (1", 25.4mm)

Hardware Included:

• x2 #10-24 x 1" Socket Head Cap Screws
• x2 #10-24 Nylock Nuts
• x2 0.75" Composite Bushings
• x2 0.9" Composite Bushings
• x1 88.9mm Rubber Strip
• x1 5/32" Hex Key Wrench
