SKU: RMS010103225_TR03

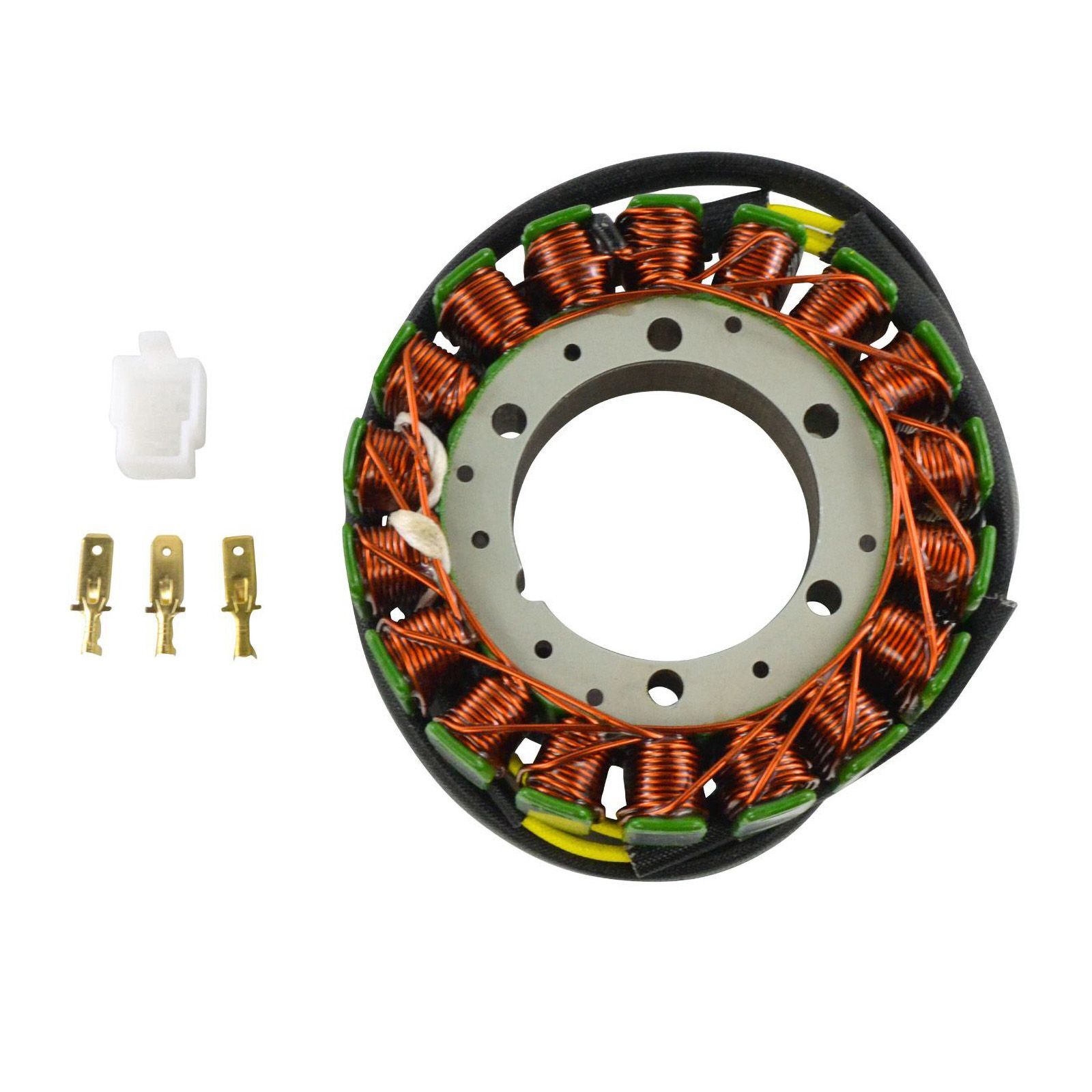

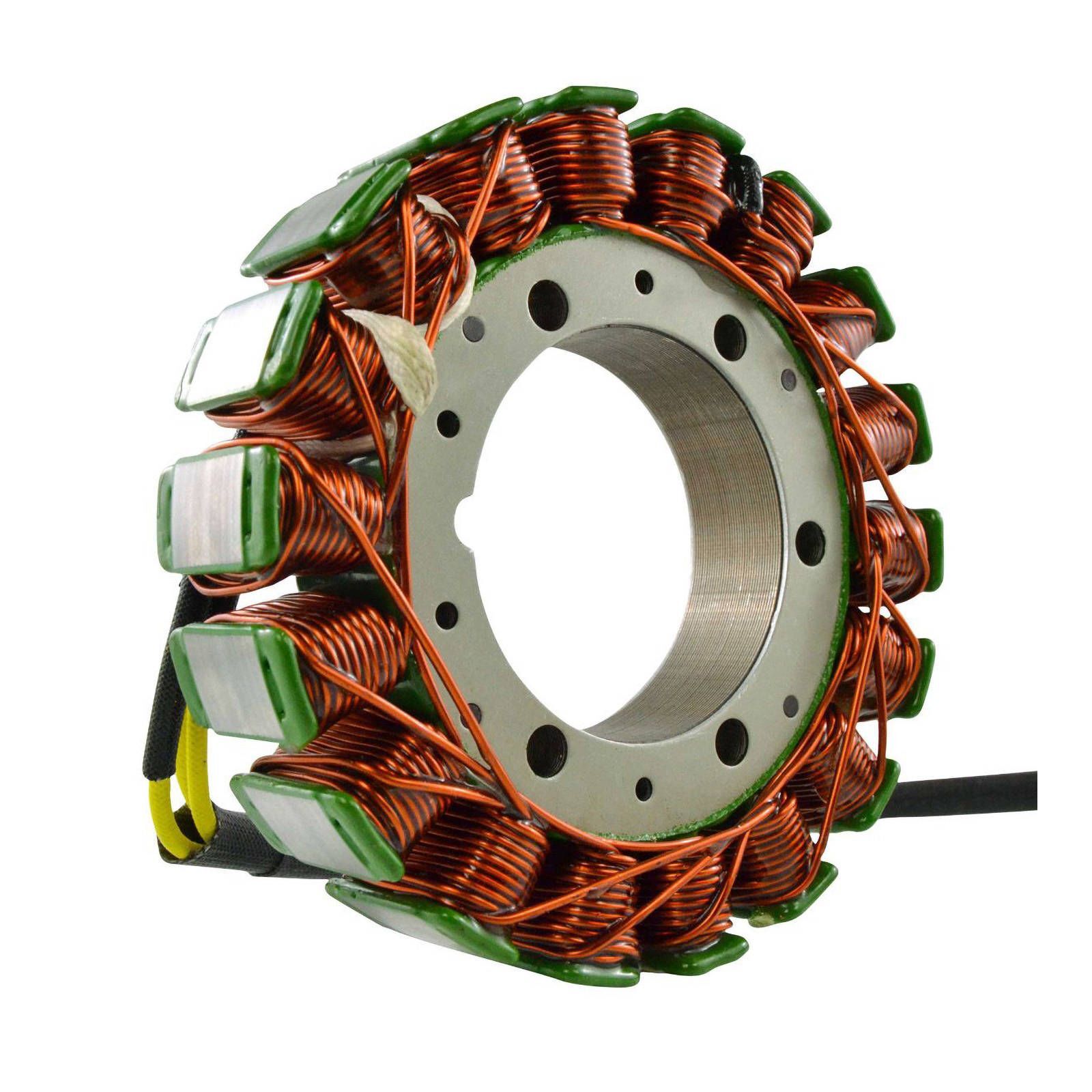

Stator Coil Triumph Bonneville 900 for Triumph BONNEVILLE T100 2002-2005

$299.90
2 x Available


Calculate Shipping



Free pick-up from store - $0.00
Free pickup from Xtreme Powersports Australia, 68 Sturt Street, Mount Gambier, SA 5290

Description

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 115 mm
  • Thickness: 16 mm
  • Length of wires stator to grommet: 80 mm
  • Length of wires grommet to plug: 1140 mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3

Wire to wire resistance:

  • Alternator: Black to Black = 0.4 ohms +-20%

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.


Bike Fitment:

  • fits Triumph BONNEVILLE T100 2002
  • fits Triumph BONNEVILLE T100 2003
  • fits Triumph BONNEVILLE T100 2004
  • fits Triumph BONNEVILLE T100 2005

Specifications

SKU RMS010103225_TR03
Brand RM_Stator
Shipping Weight 0.2500kg
