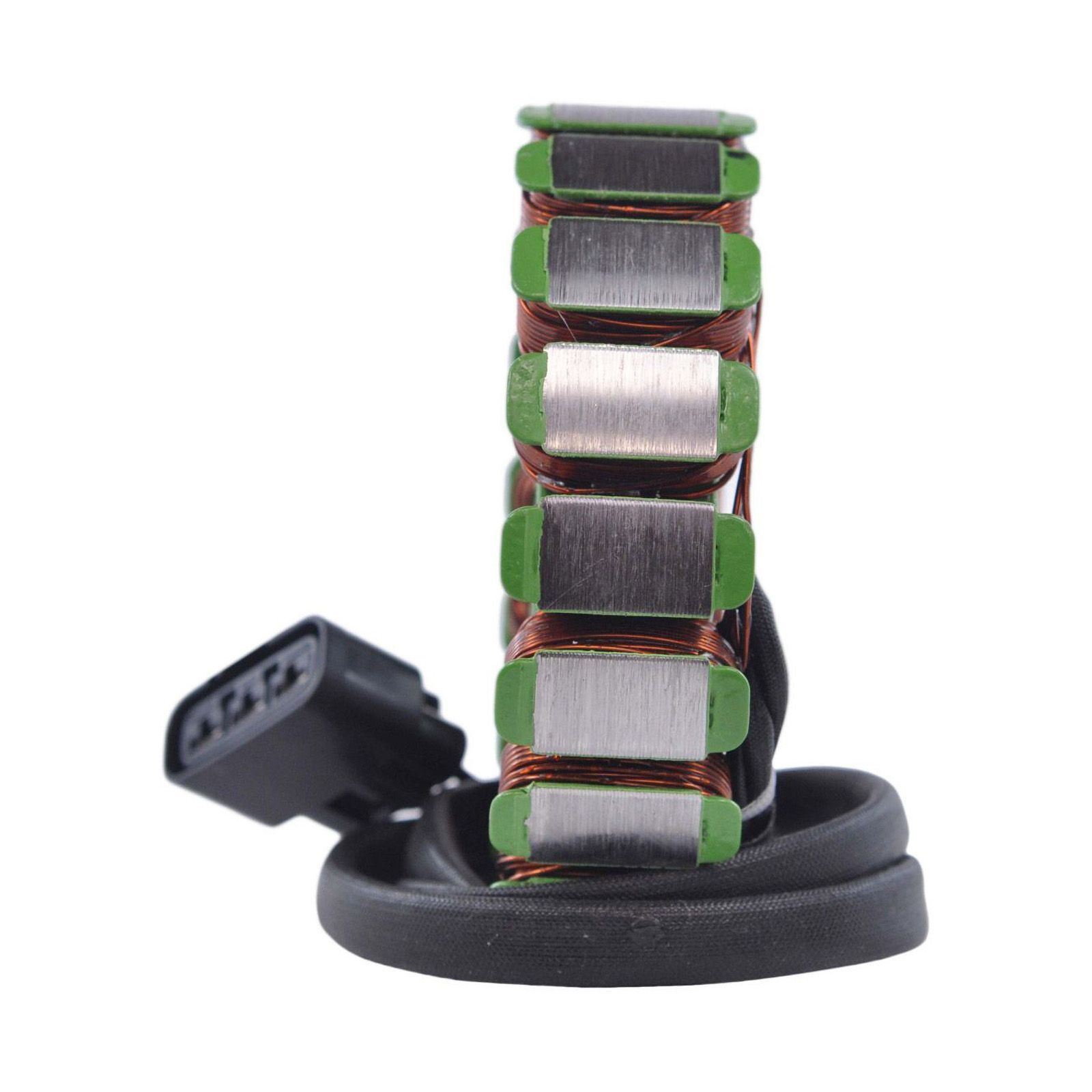

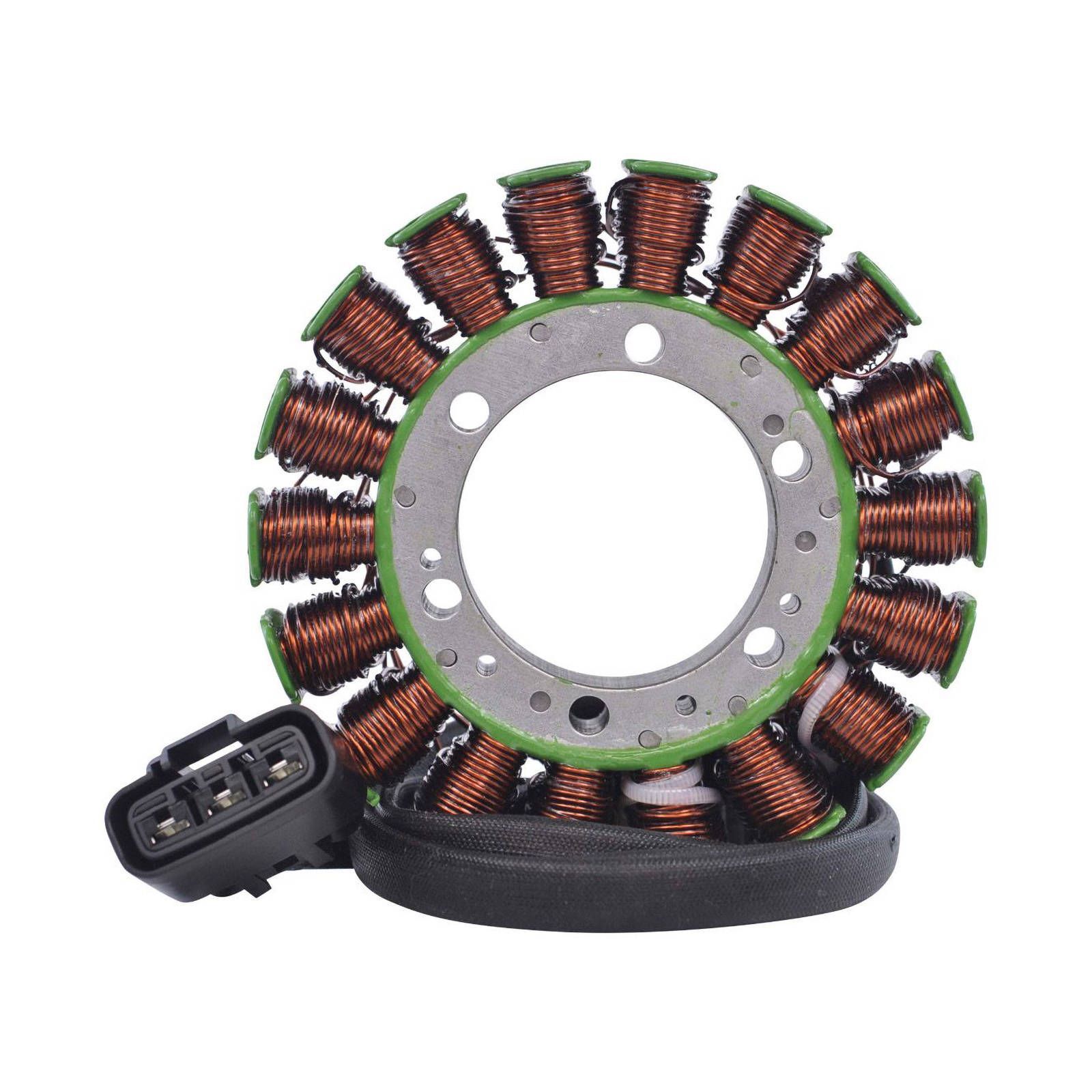

Stator Coil for Triumph ROCKET III ROADSTER 2010-2017

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 54 mm
• Exterior diameter: 115 mm
• Thickness: 16 mm
• Length of wires stator to grommet: 80 mm
• Length of wires grommet to plug: 1140 mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire to wire resistance:

• Alternator: Black to Black = 0.4 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Bike Fitment:

• fits Triumph ROCKET III ROADSTER 2010
• fits Triumph ROCKET III ROADSTER 2011
• fits Triumph ROCKET III ROADSTER 2012
• fits Triumph ROCKET III ROADSTER 2013
• fits Triumph ROCKET III ROADSTER 2014
• fits Triumph ROCKET III ROADSTER 2015
• fits Triumph ROCKET III ROADSTER 2016
• fits Triumph ROCKET III ROADSTER 2017
